Two Stage Regulator B10

1. SCOPE

The Regulator B10 is two stage regulator for medium inlet pressure with high precision class and in accordance to EN 334 / EN88 specifications (compliance according to PED 97/23/CE art. 3.3).

2. DESCRIPTION

Design for use on Domestic or Industrial applications on Natural Gas used in cabinets, building gas line with or without meter for domestic or commercial applications.

3. TECHNICAL DATA

Body and cover : Die Cast Aluminum Alloy
Internal parts : Nitrile NBR, Stainless Steel, Brass, Aluminium

Upstream pressure Downstream pressure Flow rate
bar mbar B10
0,5 to 5 24 Mbar / 110 Mbar
(Others on request)		 10 Nm3/h NG
6,3 Nm3/h Propane
or 12,6 kg/h Propane

SPECIFICATIONS

Working temperature: Standard use -20°C to +60°C
Inlet connection: ¾’’ Loose Nut
Outlet connection: 1’’Loose Nut

OTHERS

Maximum inlet pressure up to 6 Bar
It can be mounted in either position Horizontally or Vertically
Other Inlet and Outlet connections on request
Adjustable outlet pressure on request

Two Stage Regulator B25

1. SCOPE

The Regulator B25 is two stage regulator for medium inlet pressure with high precision class and in accordance to EN 334 / EN88 specifications (compliance according to PED 97/23/CE art. 3.3).

2. DESCRIPTION

Design for use on Domestic or Industrial applications on Natural Gas used in cabinets, building gas line with or without meter for domestic or commercial applications.

3. TECHNICAL DATA

Body and cover : Die Cast Aluminum Alloy
Internal parts : Nitrile NBR, Stainless Steel, Brass, Aluminium

Upstream pressure Downstream pressure Flow rate
bar mbar B25
0,5 to 5 24 Mbar / 75 Mbar / 110 Mbar
(Others on request)		 25 Nm3/h NG
15,6 Nm3/h Propane
or 31,2 kg/h Propane

SPECIFICATIONS

Working temperature: Standard use -20°C to +60°C
Inlet connection: ¾’’ Loose Nut
Outlet connection: 1’’/ 1¼” Loose Nut

OTHERS

Maximum inlet pressure up to 6 Bar
It can be mounted in either position Horizontally or Vertically
Other Inlet and Outlet connections on request
Adjustable outlet pressure on request

Two Stage Regulator B40

1. SCOPE

The Regulator B40 is two stage regulator for medium inlet pressure with high precision class and in accordance to EN334 / EN88 specifications (compliance according to PED 97/23/CE art. 3.3).

2. DESCRIPTION

Design for use on Domestic or Industrial applications on Natural Gas used in cabinets, building gas line with or without meter for domestic or commercial applications.

3. TECHNICAL DATA

Body and cover: Die Cast Aluminum Alloy
Internal parts: Nitrile NBR, Stainless Steel, Brass, Aluminium

Upstream pressure Downstream pressure Flow rate
bar mbar B40
0,5 to 5 110 Mbar
(Others on request)		 40 Nm3/h NG
25 Nm3/h Propane
or 50 kg/h Propane

SPECIFICATIONS

Working temperature: Standard use -20°C to +60°C
Inlet connection: ¾’’ Loose Nut
Outlet connection: ¾’’Loose Nut

OTHERS

Maximum inlet pressure up to 6 Bar
It can be mounted in either position Horizontally or Vertically
Other Inlet and Outlet connections on request
Adjustable outlet pressure on request

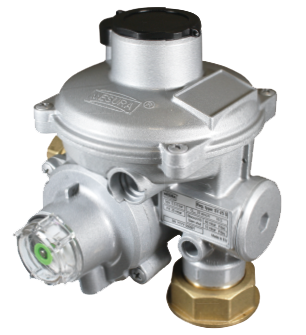

Two Stage Regulator B50

1. SCOPE

The Regulator B50 is two stage regulator for medium inlet pressure with precision class in accordance with EN 334 / EN88 specifications (compliance according to PED 97/23/CE art. 3.3)

2. DESCRIPTION

Design for use on Domestic or Industrial applications on Natural Gas used in cabinets, building gas line with or without meter for domestic or commercial applications.

3. TECHNICAL DATA

Body and cover : Die Cast Zinc Alloy according to ISO: ZnAl4
Internal parts : Nitrile NBR, Stainless Steel, Brass, Aluminium

Upstream pressure (bar) Downstream pressure Flow rate
bar mbar B50
0,5 to 5 75 Mbar / 110 Mbar
(Others on request)		 50 Nm3/h NG
31,5 Nm3/h Propane
or 63 kg/h Propane

SPECIFICATIONS

Operating temperature: Standard use -20°C to +60°C
Inlet connection: ¾’’ Loose Nut
Outlet connection: 1¼” Loose Nut

OTHERS

Maximum inlet pressure up to 6 Bar
It can be mounted in either position Horizontally or Vertically
Other Inlet and Outlet connections on request
Adjustable outlet pressure on request

Two Stage Regulator B100

1. SCOPE

The Regulator B100 is two stage regulator for medium inlet pressure with precision class in accordance with EN 334 / EN88 specifications (compliance according to PED 97/23/CE art. 3.3)

2. DESCRIPTION

Design for use on Domestic or Industrial applications on Natural Gas used in cabinets, building gas line with or without meter for domestic or commercial applications.

3. TECHNICAL DATA

Body and cover : Die Cast Zinc Alloy according to ISO: ZnAl4
Internal parts : Nitrile NBR; Stainless Steel; Brass; Aluminium

Upstream pressure (bar) Downstream pressure Flow rate
bar mbar B100
1 to 5 110 Mbar
(Others on request)		 100 Nm3/h NG
63 Nm3/h Propane
or 126 kg/h Propane

SPECIFICATIONS

Working temperature: Standard use -20°C to +60°C
Inlet connection: 1’’ Loose Nut
Outlet connection: 2” Loose Nut

OTHERS

Maximum inlet pressure up to 6 Bar
It can be mounted in either position Horizontally or Vertically
Other Inlet and Outlet connections on request
Adjustable outlet pressure on request

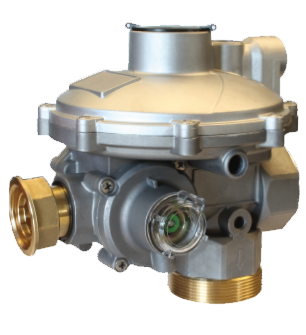

Two Stage Regulator S9

1. SCOPE

The Regulator S9 is two stage regulator for medium inlet pressure with precision class in accordance with EN 334 / EN88 specifications (compliance according to PED 97/23/CE art. 3.3)

2. DESCRIPTION

Design for use on Domestic or Industrial applications on Natural Gas used in cabinets, building gas line with or without meter for domestic or commercial applications.

3. TECHNICAL DATA

Body and Cover : Die Cast Aluminium Alloy
Internal parts : Nitrile NBR; Stainless Steel; Brass; Aluminium

Upstream pressure (bar) Downstream pressure Flow rate
bar mbar S9
1 to 5 100 / 110 Mbar
(Others on request)		 Up to 200 Nm3/h NG*

SPECIFICATIONS

Working temperature: Standard use -20°C to +60°C
Inlet connection: 1.5’’ Loose Nut
Outlet connection: 2” Loose Nut

OTHERS

Maximum inlet pressure up to 6 Bar
It can be mounted in either position Horizontally or Vertically
Other Inlet and Outlet connections on request
Adjustable outlet pressure on request

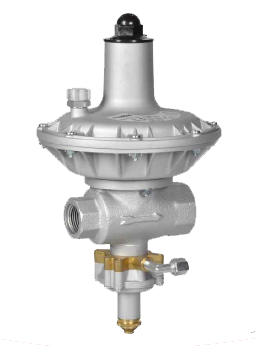

Single Stage Regulator IPR

1. SCOPE

The Regulator IPR is single stage regulator for medium inlet pressure with precision class in accordance with EN 334 / EN88 specifications (compliance according to PED 97/23/CE art. 3.3)

2. DESCRIPTION

Design for use on Domestic or Industrial applications on Natural Gas used in cabinets, building gas line with or without meter for domestic or commercial applications.

3. TECHNICAL DATA

Body and Cover : SG Iron as per EN 334
Internal parts : Nitrile NBR; Stainless Steel; Brass; Aluminium

Upstream pressure (bar) Downstream pressure Flow rate
bar mbar IPR
1 to 5 100 / 110 Mbar
(Others on request)		 Upto 300 Nm3/h NG*

SPECIFICATIONS

Working temperature: Standard use -20°C to +60°C
End Connection: 1” X 1.5” Screwed End or 2” X 2” Flanged End

OTHERS

Maximum inlet pressure up to 6 Bar
It can be mounted in either position Horizontally or Vertically
Other Inlet and Outlet connections on request
Adjustable outlet pressure on request
